Baty SM20



The Baty ShadoMaster SM20 is a vertical light path floor standing profile projector with a 500mm / 20” screen and features a large heavy duty high precision workstage with 250mm x 125mm measuring range and a 0.5 micron resolution.

Features
  • 500mm screen with 90 degree crosslines and chart clips
  • Angled screen for easy viewing
  • Profile illumination with halogen lamp and green filter
  • Single lens mounting
  • Lens magnification choice: 5x, 10x, 20x, 25x, 50x and 100x
  • Helix adjustment of light source for accurate thread form projection
  • Large stage travel 10″(250mm) x 5″(125mm)
  • Digital angle measurement
  • 0.5 micron resolution

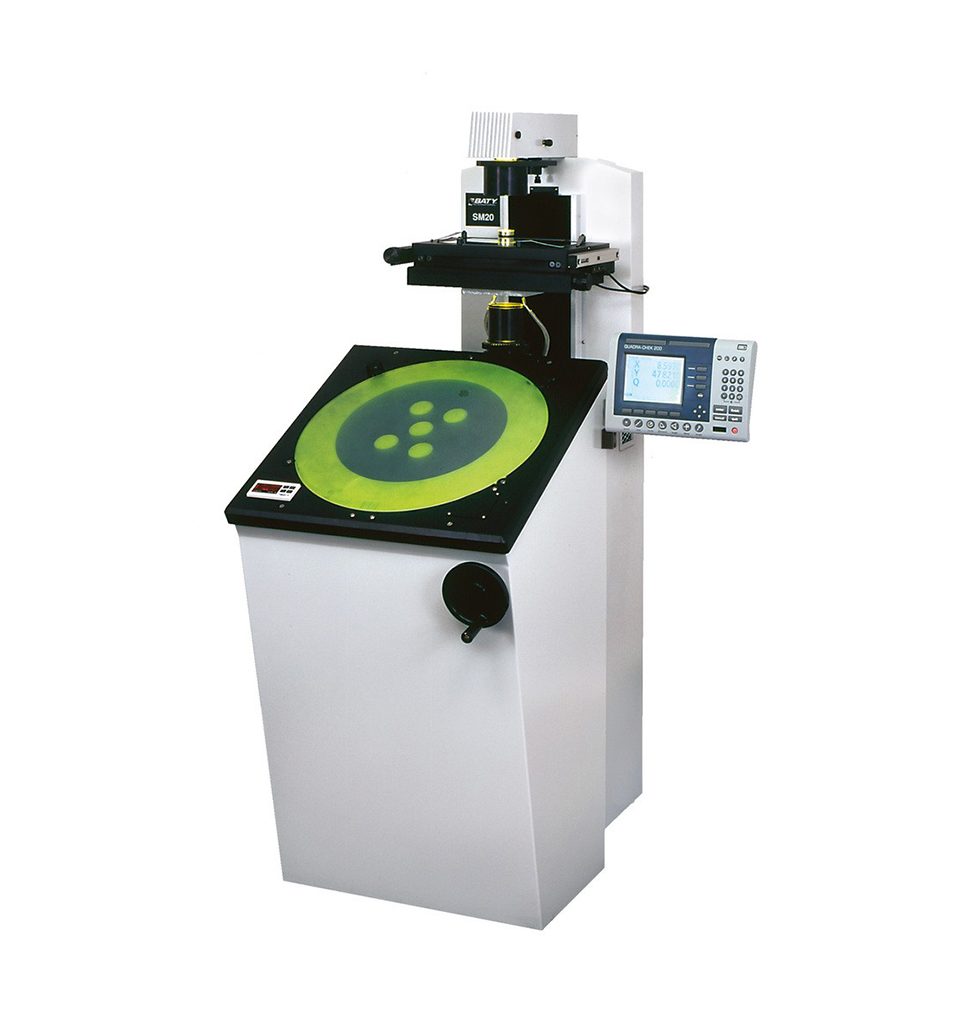

Baty-SM20-GMR
Measuring options

XLS: A simple 2 axis digital readout for X&Y measurement.

GXL: Incorporates geometric functions for skew alignment, circle, Line, angle and radius measurement. Pitch circle diameter and construction of intersection points etc. Tolerancing and simple reporting also included.

GXL-E: As GXL with screen mounted automatic profile edge sensor. As an option the sensor can be fitted internally.

FT-2: Complete TOUCH SCREEN DRO with 2D Fusion touch software. Full geometric functionality, view of measured part can be printed as a fully dimensioned drawing. Full reporting capability includes, SPC, tabulated details with pass / fail analysis, auto link to Excel and auto sequence programming feature. Windows O/S and built in 19″ portrait touch screen monitor in a rugged all steel housing.

FT-2E: Complete TOUCH SCREEN DRO with 2D Fusion Touch software as above. Built-in optical edge detection allows data points to be taken ‘on the fly’ as the projected image is passed under the screenmounted fibre optic sensor. An internally mounted edge sensor is available as an option on all ‘R’ series projectors.

Projector Type SM20
Magnification 10x 20x 25x x25 50x 100x
Condenser L L L S S S
Field of view 50 25 20 20 10 5
Max diameter 200 200 200 200 180 85
Max focal pane height (profile lighting) 205 203 218 254 240 195
Max end mill height (surface lighting) 150 153 153 155 150 150
